Giga-AccessEtherLinX-II Serie - Optisches Ethernet Access Device

Der Giga-AccessEtherLinX-II von B+B SmartWorx ist eine Ethernet Access Unit.
Der Giga-AccessEtherLinX-II von B+B SmartWorx ist eine Ethernet Access Unit.

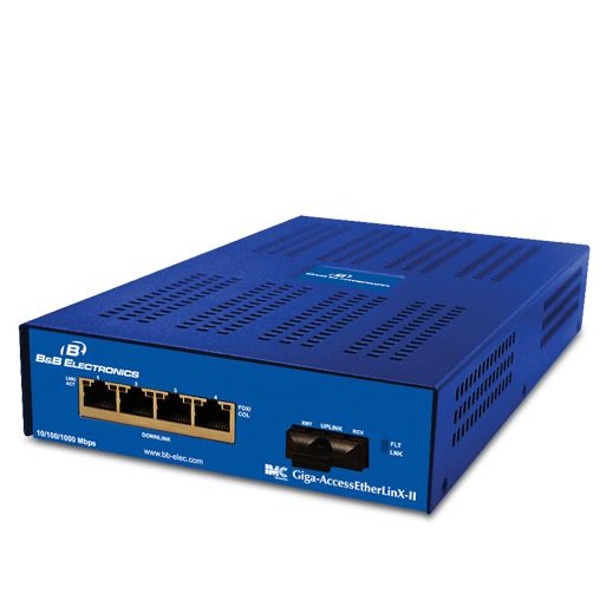

Die optischen Ethernet Access Devices der Giga-AccessEtherLinX-II Serie von B+B SmartWorx sind ausgestattet mit 4 Ethernet Ports, 1 Glasfaser Port, SNMP Management, QoS - 802.1p basierte Paket priorisierung, Bi-Direktionale Bandbreitenkontrolle und VLAN Tagging.

zum Merkzettel hinzufügen

Datenblatt zusenden

Giga-AccessEtherLinX-II Series - Optical Ethernet Access Device

The Giga-AccessEtherLinX-II enables service providers to offer differentiated “Transparent LAN” services to multi-tenant building and business customers without the need for costly remote routers.  Residing at the customer premises, the Giga-AccessEtherLinX-II provides a VLAN-based, Layer 2 entry point to the last mile fiber network to support trunking, differentiating and separating customer traffic.  Featuring SNMP management with per-port 802.1Q VLAN, 802.1p QoS, traffic prioritization, bandwidth control and multicast pruning/snooping (using IGMP v1, v2), the Giga-AccessEtherLinX-II is perfect for a wide range of Fiber-to-the-Home, Fiber-to-the-Curb and Fiber-to-the-Business (FTTx) services, and is an ideal solution for delivering Ethernet-based services to customers quickly and cost effectively.  Designed with a small footprint, the Giga-AccessEtherLinX-II facilitates easy installation inside the premises.  It features four 10/100/1000 twisted pair Ethernet downlink ports (for connecting users/LANs), with either a 1000Base-FX fiber or SFP uplink port, and is powered from an internal AC or DC power supply.

The Giga-AccessEtherLinX-II accepts traffic containing VLAN tags on the Uplink port and directs that traffic to the twisted pair downlink ports based on the VLAN ID.  In addition to assigning 802.1Q VLAN-tags on a per-port basis, users can also “Qualify” the different VLAN TAGS to assign based on the DiffServ or PRI value of the incoming frame.  Traffic priority for each port is supported with a hi/low prioritization queues.  The Giga-AccessEtherLinX-II includes per port bi-directional bandwidth control, and supports IGMP multicast pruning which ensures only the necessary amount of IP multicast packets are bridged.


Small Footprint, Full-Featured

  • 802.1Q VLAN-tags on a per-port basis, based on DiffServ or PRI values
  • QoS – 802.1p-based packet prioritization
  • Allows configuration via GUI, Telnet or serial port
  • Remote management and upgrades
  • Per-port bi-directional bandwidth control
  • Supports IGMP multicast pruning
  • RMON traffic statistics

Integrated Solution

  • Lowers the cost of provisioning fiber services
  • SNMP-Manageable
  • Supports remote "IP-Less" management when connected to a iMcV-Giga-FiberLinX-II set as a Host device

Secure and flexible solution

  • All management traffic remains isolated from the remote LAN
  • IEEE 802.1Q VLAN and 802.1p compliant
  • VLAN-tagging and Q-in-Q (double-tagging) segregates customer traffic

Easy to configure and manage with GUI-based iView²

  • Up and running in less than five minutes
  • Includes RMON statistics
  • TRAP notification capability
  • SNMP V1 and V2c compatible

Technical Specifications

  • Monitors (remote) status without a physical presence or separate "IP" connection through UMA (Unified Management Agent via the SNMP Management Module)
  • Maintains security; all management traffic can remain isolated from the data traffic
  • Read/write IEEE 802.1Q VLAN-tags
  • Q-in-Q (double-tagging) to further segregate customer VLAN traffic
  • Can assign different TAGS based on DiffServ or PRI values of incoming frames.
  • QoS: IEEE 802.1p-based or DSCP packet prioritization (2 queues [high/low] with 8 levels of priority)
  • VLAN Tag-based on DSCP or priority of incoming frame ("traffic grooming")
  • Layer 2 packet switching, store and forward operation
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100 pps for 1000 Mbps
  • Includes per-port bi-directional bandwidth control
  • AutoCross for MDI/MDIX
  • Features Auto Negotiation and Selective Advertising
  • MTU: Supports packets up to 9600 bytes
  • Supports Half- and Full-Duplex operation
  • Supports IEEE 802.3x Flow Control


  • Includes GUI-based iView² software, featuring iConfig utility for rapid IP configuration
  • SNMP V1 and V2c compatible
  • Includes DHCP client for IP address assignment
  • Features TFTP client for remote upgrades
  • Supports Telnet
  • Includes per port loopback test modes
  • Includes diagnostic LEDs

Ethernet Protocols Supported

  • 802.3 10Base-T twisted pair
  • 802.3u 100Base-TX twisted pair
  • 802.3ab 1000Base-T twisted pair
  • 802.3z 1000Base-LX or SX fiber


  • RJ-45 and SC or SFP

Regulatory Approvals

  • FCC Class B
  • UL/cUL, CE, CB


  • 1.64" H x 5.64" W x8.95" D (4.2 cm x 14.3 cm x 22.7 cm)

Shipping Weight

  • 1.6 lbs. (0.6 kg)

Operating Temperature

  • 32° to 122° F (0° to +50° C); 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Storage Temperature

  • -13° to +158°F (-25° to +70°C); 5% to 95% (non-condensing)

Power Requirements

  • 100-240V AC, 50/60Hz, 0.5/0.25A for AC 48V DC, 0.5A for DC
852-10302 Giga-AccessEtherLinX, TX/4 + SFP (requires one SFP/1250 module, sold separately) (AC Version)
852-10303 Giga-AccessEtherLinX, TX/4 + SX-MM850-SC (AC Version)
852-10304 Giga-AccessEtherLinX, TX/4 + LX-SM1310-SC (AC Version)
852-10305 Giga-AccessEtherLinX, TX/4 + LX-SM1310/PLUS-SC (AC Version)
852-10306 Giga-AccessEtherLinX, TX/4 + LX-SM1550/LONG-SC (AC Version)
852-10307 Giga-AccessEtherLinX, TX/4 + LX-SM1550/XLONG-SC (AC Version)
852-10310 Giga-AccessEtherLinX, TX/4 + SSLX-SM1310-SC (1310xmt/1550rcv)(AC Version)
852-10311 Giga-AccessEtherLinX, TX/4 + SSLX-SM1550-SC (1550xmt/1310rcv)(AC Version)
852-10312 Giga-AccessEtherLinX, TX/4 + SSBX-SM1310-SC (1310xmt/1490rcv)(AC Version)
852-10313 Giga-AccessEtherLinX, TX/4 + SSBX-SM1490-SC (1490xmt/1310rcv)(AC Version)
852-10314 Giga-AccessEtherLinX, TX/4 + SSLX-SM1310/PLUS-SC (1310xmt/1550rcv)(AC Version)
852-10315 Giga-AccessEtherLinX, TX/4 + SSLX-SM1550/PLUS-SC (1550xmt/1310rcv)(AC Version)
852-10316 Giga-AccessEtherLinX, TX/4 + SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)(AC Version)
852-10317 Giga-AccessEtherLinX, TX/4 + SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)(AC Version)
852-10318 Giga-AccessEtherLinX, TX/4 + SSLX-SM1490/LONG-SC (1490xmt/1550rcv)(AC Version)
852-10319 Giga-AccessEtherLinX, TX/4 + SSLX-SM1550/LONG-SC (1550xmt/1490rcv)(AC Version)
852-32302 Giga-AccessEtherLinX, TX/4 + SFP (requires one SFP/1250 module, sold separately) (DC Version)
852-32303 Giga-AccessEtherLinX, TX/4 + SX-MM850-SC (DC Version)
852-32304 Giga-AccessEtherLinX, TX/4 + LX-SM1310-SC (DC Version)
852-32305 Giga-AccessEtherLinX, TX/4 + LX-SM1310/PLUS-SC (DC Version)
852-32306 Giga-AccessEtherLinX, TX/4 + LX-SM1550/LONG-SC (DC Version)
852-32307 Giga-AccessEtherLinX, TX/4 + LX-SM1550/XLONG-SC (DC Version)
852-32310 Giga-AccessEtherLinX, TX/4 + SSLX-SM1310-SC (1310xmt/1550rcv)(DC Version)
852-32311 Giga-AccessEtherLinX, TX/4 + SSLX-SM1550-SC (1550xmt/1310rcv)(DC Version)
852-32312 Giga-AccessEtherLinX, TX/4 + SSBX-SM1310-SC (1310xmt/1490rcv)(DC Version)
852-32313 Giga-AccessEtherLinX, TX/4 + SSBX-SM1490-SC (1490xmt/1310rcv)(DC Version)
852-32314 Giga-AccessEtherLinX, TX/4 + SSLX-SM1310/PLUS-SC (1310xmt/1550rcv)(DC Version)
852-32315 Giga-AccessEtherLinX, TX/4 + SSLX-SM1550/PLUS-SC (1550xmt/1310rcv)(DC Version)
852-32316 Giga-AccessEtherLinX, TX/4 + SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)(DC Version)
852-32317 Giga-AccessEtherLinX, TX/4 + SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)(AC Version)
852-32318 Giga-AccessEtherLinX, TX/4 + SSLX-SM1490/LONG-SC (1490xmt/1550rcv)(AC Version)
