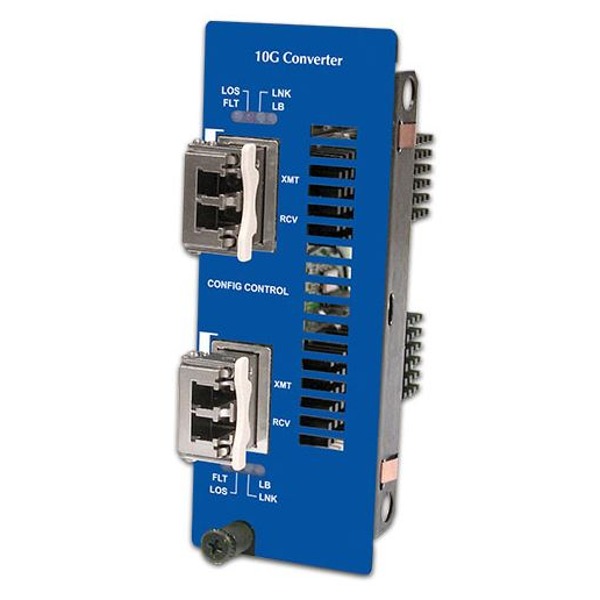

IMCV-10G Converter XFP - Modularer 10 Gbps Moduskonverter

Der IMCV-10G Converter XFP von B+B SmartWorx ist ein Modeconverter.
Der IMCV-10G Converter XFP von B+B SmartWorx ist ein Modeconverter.
Der IMCV-10G Converter XFP von B+B SmartWorx ist ein modularer, protokollunabhängiger, 10 Gbps XFP Glasfaser Moduskonverter mit Datenraten von 9.9 Gbps bis zu 11.3 Gbps, FX LinkLoss und XFP Loopback.

zum Merkzettel hinzufügen

Datenblatt zusenden

IMCV-10G Converter XFP - Modular Protocol-Independent, 10 Gbps XFP Fiber Mode Converter

The iMcV-10G-Converter is a dual-wide SNMP manageable module that allows network operators to convert multiple fiber types and wavelengths, as well as copper XFPs, within a network. It installs in the modular, SNMP-manageable iMediaChassis series and in the unmanaged MediaChassis series.

The iMcV-10G-Converter uses 10 Gbps XFP modules which are capable of moving large amounts of data over long distances, for applications such as ISPs, Data Storage, Fiber Channel and others. The hot-swappable nature of XFPs and the numerous fiber modes and types that are available allow for easy configuration and future upgrading as network demands evolve.

The iMcV-10G-Converter is protocol-independent with dual XFP ports which can provide a single conversion between copper, different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber. The iMcV-10G-Converter module supports a variety of userconfigurable features such as LinkLoss, LoopBack and variable speed XFPs.

Easily configure and manage converters with the GUI-based iView². As an SNMP management application, iView² gives network managers the ability to monitor and control B&B Electronic's products. iView² runs standalone on Windows NT/XP/2000/7 or as a Web Server running under IIS.



  • 2 x XFP ports
  • Supports copper and fiber XFP transceivers
  • Protocol-independent operation
  • Converts between dissimilar fiber modes and wavelengths
  • Includes diagnostic LEDs
  • Hot-swappable architecture
  • Modular Form Factor
  • Compatible with IMC Networks’ XFPs and all standard XFP transceivers

Standard Compliance

  • SFF-8472 DDMI standard (Revision 1.0)


  • Dimensions Dual-wide iMcV-module
  • Shipping Weight 0.25 lbs (0.11 kg)


  • Operating Temperature: -4° to +158° F (-20° to +70° C)
  • Storage Temperature: -40° to +185° F (-40° to +85° C)
  • Operating Humidity 5% to 95% (non-condensing),0 – 10,000 ft. altitude

Power Consumption

  • 637mA @ +70° C (Typical @ 5V)

Regulatory Aprovals

  • FCC Class A
  • UL/cUL, CE
860-12100 iMcV-10G-Converter, XFP/XFP (requires two XFP Modules)
