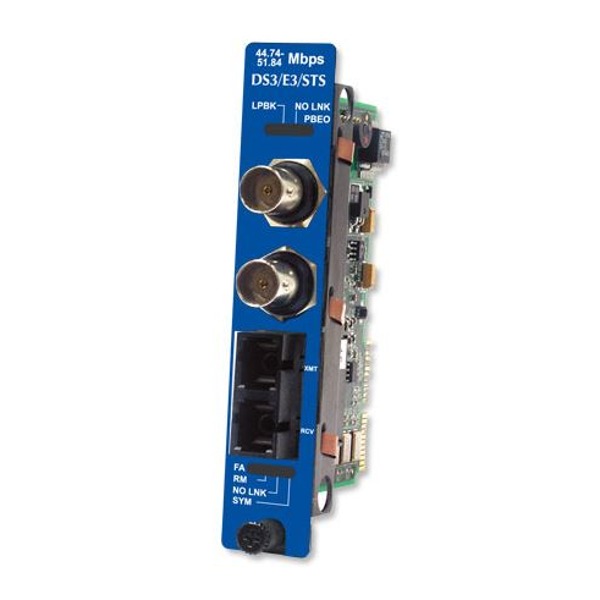

IMCV-DS3/E3/STS Repeater Serie - DS3/E3 Repeater

Der IMCV-DS3/E3/STS Repeater von B+B SmartWorx ist ein Medienkonverter.
Der IMCV-DS3/E3/STS Repeater von B+B SmartWorx ist ein Medienkonverter.
Die Glasfaser zu 2x Koaxial Medienkonverter von B+B SmartWorx sind ausgestattet mit iView2 unterstüzung, Loopback Tests, Single- oder Multi-Mode, Datenraten bis zu 52 Mbps und Übertragungsdistanzen bis zu 80km.

zum Merkzettel hinzufügen

IMCV-DS3/E3/STS Repeater Series - DS3/E3 Repeater

iMcV-DS3/E3/STS converters are perfect for service providers and enterprise campus networks utilizing DS3/E3/STS coaxial circuits. The modules enable users to convert coax media to single-mode fiber and extend the distance of data transmissions over MAN access networks up to 80 km. The modules support premises networking applications to convert the incoming circuit to fiber for distribution into the structured cabling system.

Choose from versions offering repeater-like functionality or Line- Terminating functionality; all models are Layer 1 devices. All versions of modules are installed as a HOST-REMOTE pair and can be remotely managed when the HOST is installed in an iMediaChassis with an SNMP–Management Module. This enables network managers to conduct loopback testing, to monitor, and to manage units located up to 80 km away. Since B&B Electronics’ management technology functions transparently to the user data, real-time, end-to-end management is provided at all times.




  • Protocol-Selectable — Operates at DS3 (45 Mbps), E3 (34 Mbps) or STS-1 (52 Mbps) protocols
  • Ability to manage remote unit
  • Two types of loopback tests
  • Full bit rate for customer traffic
  • Jitter attenuation
  • Line build out
  • Installs in iMediaChassis or MediaChassis chassis*
  • Supports GUI-Based iView²
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Available for single-strand fiber


  • Dimensions 4.19”H x 0.78”W x 2.75”D (10.74 x 2 x 7.05 cm)
  • Shipping Weight 0.30 lbs (0.11 kg)


  • Operating Temperature: +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158° F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing), 0 – 10,000 ft. altitude

Regulatory Approvals

  • FCC Class A
  • UL/cUL
  • CE
850-14300 iMcV-DS3/E3/STS-1, BNC/FX-MM1300-ST
850-14301 iMcV-DS3/E3/STS-1, BNC/FX-MM1300-SC
850-14302 iMcV-DS3/E3/STS-1, BNC/FX-SM1310/PLUS-ST
850-14303 iMcV-DS3/E3/STS-1, BNC/FX-SM1310/PLUS-SC
850-14304 iMcV-DS3/E3/STS-1, BNC/FX-SM1310/LONG-ST
850-14305 iMcV-DS3/E3/STS-1, BNC/FX-SM1310/LONG-SC
850-14306 iMcV-DS3/E3/STS-1, BNC/FX-SM1550/LONG-SC
850-14310 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1310-SC (1310xmt/1550rcv)
850-14311 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1550-SC (1550xmt/1310rcv)
850-14312 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
850-14313 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
850-14314 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1310/LONG-SC (1310xmt/1550rcv)
850-14315 iMcV-DS3/E3/STS-1, BNC/SSFX-SM1550/LONG-SC (1550xmt/1310rcv)
850-14338 iMcV-DS3/E3/STS-1, BNC/FX-MM850-ST
850-14339 iMcV-DS3/E3/STS-1, BNC/FX-MM850-SC
