McBasic 10/100 Serie - Kompakter Medienkonverter mit Auto-Sensing

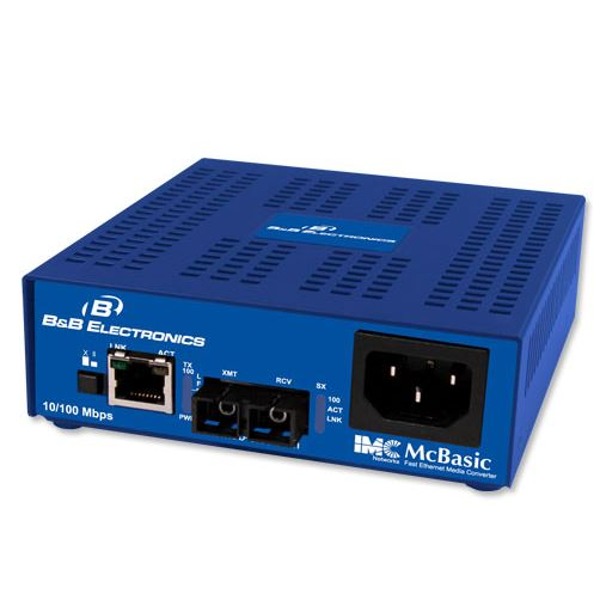

Der McBasic 10/100 von B+B SmartWorx ist ein Medienkonverter.
Der McBasic 10/100 von B+B SmartWorx ist ein Medienkonverter.
Die kompakten Ethernet zu Glasfaser Konverter der McBasic 10/100 Serie von B+B SmartWorx sind ausgestattet mit Auto-Sensing, LinkLoss & FiberAlert Funktionen, Ethernet und Single- oder Multi-Mode Glasfaser.

zum Merkzettel hinzufügen

Datenblatt zusenden


McBasic 10/100 Series - 10/100 Mbps Auto Sensing Compact Media Converter

The McBasic’s small, table-top design and durability make it perfect for installation anywhere space is limited. Additionally, the McBasic comes with an internal AC power supply. This feature significantly increases reliability over products that use bulky, external AC/DC power transformers.

The McBasic includes troubleshooting features such as LinkLoss, Transparency and Link Fault Detection that make isolating fiber breaks easier should they occur. The McBasic also features a crossover/ pass-through switch on the twisted pair connection for MDI/MDIX connectivity and diagnostic LEDs. Most McBasic units are available with single-strand fiber which can effectively double the capacity of fiber by allowing two individual channels to share one strand of fiber; Full-Duplex data travels on different wavelengths — 1310 nm and 1550 nm, for example.

Auto-Sensing 10/100 Mbps McBasic converters offer significant advantages over regular 10 and 100 Mbps converters. An ideal choice for both enterprise and service provider networks, 10/100 converters save time and money when deployed at the host and remote site. Enterprise networks planning a migration path from 10 Mbps to 100 Mbps often deploy Auto Sensing converters, then upgrade when ready and units will automatically adapt to increased speed. Service providers with 10 or 100 Mbps links to customer premises can sell customers more bandwidth without upgrading the converters at the POP and the customer network edge.

Specifications

Technical

  • Include MDI/MDIX switch
  • Includes fixed, internal AC power
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Includes diagnostic LEDs
  • IEEE 802.3 10Base-T twisted pair and 10Base-FL fiber
  • IEEE 802.3u 100Base-TX twisted pair and 100Base-FX or -SX fiber
  • Features Link Fault Detection and Transparency
  • Features Auto Negotiation

Connectors

  • RJ45 and ST or SC
  • Supports Half- and Full-Duplex operation

Mechanical

  • Dimensions 1.64”H x 4.75”W x 4.95”D (4.2 cm x 12.17 cm x 11.64 cm)
  • Shipping Weight 1.3 lbs (0.58 kg)

Power Rating

  • 100-240 VAC, 50/60Hz, 1.0A

Environmental

  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: 0° to +160° F (-20° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class A
  • UL/cUL, CSA, CE
Modelle
855-10260 McBasic, 10/100-MM850-ST
855-10261 McBasic, 10/100-MM850-SC
855-10262 McBasic, 10/100-MM1300-ST
855-10263 McBasic, 10/100-MM1300-SC
855-10267 McBasic, 10/100-SM1310/PLUS-ST
855-10268 McBasic, 10/100-SM1310/PLUS-SC
855-10269 McBasic, 10/100-SM1310/LONG-ST
855-10270 McBasic, 10/100-SM1310/LONG-SC
855-10274 McBasic, 10/100-SM1550/LONG-SC
