McLIM TP-TX/FX Serie - Medienkonverter Modul mit 10/100 Mbps

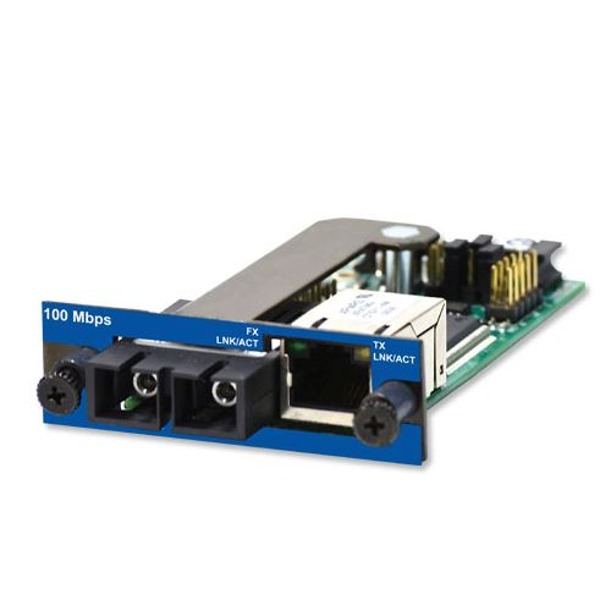

Der McLIM TP-TX/FX von B+B SmartWorx ist ein Medienkonverter Modul.
Der McLIM TP-TX/FX von B+B SmartWorx ist ein Medienkonverter Modul.
Die Medienkonverter Module der McLIM TP-TX/FX Serie von B+B SmartWorx sind ausgestattet mit einem 10/100 Mbps Ethernet Port, einem SC oder ST Glasfaser Port (Single- oder Multi-Mode) und Hot-Swap Funktion.

zum Merkzettel hinzufügen

Datenblatt zusenden


McLIM TP-TX/FX - Switching 10/100 Mbps Media Converter Module

Your network is growing and many new access points, workstations, etc. are required. However, legacy equipment, along with your existing wiring infrastructure, must work with any new equipment you implement in your network. When copper-to-fiber conversions are required, along with advanced troubleshooting features, our MediaConverter Series is the perfect solution.

MediaConverter Series enables you to easily and cost-effectively connect one type of media to other dissimilar media or networking products. This series increases the functionality and extends the productive life of both your legacy cabling infrastructure and networking equipment when adding fiber to your network.

Specifications

Technical

  • Install in any MediaConverter chassis
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber
  • Include diagnostic LEDs
  • Include hot-swappable architecture
  • 10Base-T twisted pair
  • 100Base-TX twisted pair
  • 100Base-FX or SX fiber
  • AutoCross for MDI/MDIX
  • Features Auto Negotiation

Connectors

  • RJ45, ST and SC
  • Supports Half- and Full-Duplex operation

Mechanical

  • Dimensions 0.75”H x 2.50”W x 4”D (2.20 x 6.41 x 10.25 cm)
  • Shipping Weight 0.7 lbs. (0.3 kg)

Environmental

  • Operating Temperature +32° to +122° F (0° to +50° C)
  • Storage Temperature: -13° to +158°F (-25° to +70° C)
  • Operating Humidity 5% to 95% (non-condensing)

Regulatory Approvals

  • FCC Class B
  • UL/cUL, CSA, CE
Modelle
855-12620 McLIM, TP-TX/FX-MM850-ST
855-12621 McLIM, TP-TX/FX-MM850-SC
855-12622 McLIM, TP-TX/FX-MM1300-ST
855-12623 McLIM, TP-TX/FX-MM1300-SC
855-12624 McLIM, TP-TX/FX-SM1310/PLUS-ST
855-12625 McLIM, TP-TX/FX-SM1310/PLUS-SC
855-12642 McLIM, TP-TX/SSFX-SM1310-SC (1310xmt/1550rcv)
855-12643 McLIM, TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv)
855-12644 McLIM, TP-TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
855-12645 McLIM, TP-TX/SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
