IE-Giga-MiniMc Serie - Industrieller Gigabit Medienkonverter

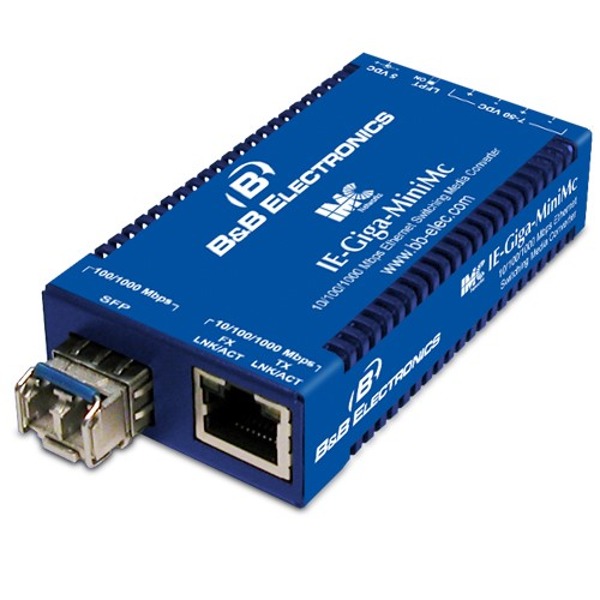

Der IE-Giga-MiniMc von B+B SmartWorx ist ein Medienkonverter.
Der IE-Giga-MiniMc von B+B SmartWorx ist ein Medienkonverter.
Die Gigabit Ethernet zu Glasfaser Medienkonverter der IE-Giga-MiniMc Serie von B+B SmartWorx sind ausgestattet mit erhöhten Betriebstemperaturen, einem 10/100/1000 Mbps Ethernet Port, einem 1000 Mbps Glasfaser Port und Dual USB Stromversorgung.

zum Merkzettel hinzufügen

Datenblatt zusenden

IE-Giga-MiniMc - Industrial Grad 10/100/1000 Miniature Media Converters

Media conversion is the most cost-effective and flexible solution for implementing new technologies on legacy wiring plants and equipment. But even reasonably-priced media converters can tack on a substantial sum to networking costs. And space constraints can also be an issue when hundreds of conversions are required.

Measuring less than 3.5 inches deep and 2 inches wide, and having both data connections on the same side of the unit — the IE-Giga-MiniMc is the industry’s smallest media converter at a fraction of the cost of other alternatives.

With Plug-and-Play, Auto Negotiation and AutoCross operation, extreme operating temperatures (-25° to +85° C), DC or AC power, the IE-Giga-MiniMc miniature media converter is easy and convenient to use.



  • IEEE 802.3 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3ab 1000Base-T twisted pair
  • IEEE 802.3z 1000Base-LX or SX fiber
  • MTU: Supports Jumbo Frames up to 10240 bytes
  • Extended temperature range (DC configuration)
  • Plug-and-play operation
  • Accepts RJ45 and SC connectors
  • 50/125µm or 62.5/125µm multi-mode fiber
  • 9/125µm single-mode fiber Single-strand fiber and CWDM models
  • 4-terminal DC power with a pair of input terminals and a pair of output terminals for cascading power on DIN installations
  • Country-specific, high-reliability power adapter
  • Auto Negotiation, Auto-Cross for MDI/MDIX
  • Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10 Mbps, 148,810 pps for 100 Mbps, 1,488,096 pps for 1000 Mbps)
  • Status LEDs
  • Supports DIN Rail mounting


  • Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm)
  • Shipping Weight 0.7 lbs (.317 kg)


  • AC Adapter 100 to 240 ±10% VAC input, 5 VDC @ 2.0 A max
  • DC Input Voltage 7 to 50 VDC @ 2.5 watts, Chassis grounded to negative terminal


  • Operating Temperature: DC terminal block -13°F to +185°F (-25°C to +85°C)
  • Operating Temperature: AC Adapter +14°F to +122°F (-10°C to +50°C)
  • Storage Temperature: -31° F to +167° F (-35° C to +75° C)
  • Operating Humidity 5% to 95% (non-condensing)


  • FCC Class B
  • UL/cUL, CSA, CE
  • NEMA TS2 (select models)
856-18830 IE-Giga-MiniMc, TX/SX-MM850-SC w/AC adapter
856-18831 IE-Giga-MiniMc, TX/LX-SM1310-SC w/AC adapter
856-18832 IE-Giga-MiniMc, TX/LX-SM1310/PLUS-SC w/AC adapter
856-18833 IE-Giga-MiniMc, TX/LX-SM1550/LONG-SC w/AC adapter
856-18834 IE-Giga-MiniMc, TX/LX- SM1550/XLONG-SC w/AC adapter
856-18835 IE-Giga-MiniMc, TX/SSLX-SM1310 SC (1310xmt/1550rcv) w/AC adapter
856-18836 IE-Giga-MiniMc, TX/SSLX-SM1550 SC (1550xmt/1310rcv) w/AC adapter
856-18825 IE-Giga-MiniMc, TX/SSBX-SM1310-SC (1310xmt/1490rcv) w/AC adapter
856-18826 IE-Giga-MiniMc, TX/SSBX-SM1490-SC (1490xmt/1310rcv) w/AC adapter
856-18837 IE-Giga-MiniMc, TX/SSLX-SM1310/PLUS-SC (1310xmt/1550rcv) w/AC adapter
856-18838 IE-Giga-MiniMc, TX/SSLX-SM1550/PLUS-SC (1550xmt/1310rcv) w/AC adapter
856-18827 IE-Giga-MiniMc, TX/SSBX-SM1310/PLUS-SC (1310xmt/1490rcv) w/AC adapter
856-18828 IE-Giga-MiniMc, TX/SSBX-SM1490/PLUS-SC (1490xmt/1310rcv) w/AC adapter
856-18839 IE-Giga-MiniMc, TX/SSLX-SM1490/LONG-SC (1490xmt/1550rcv) w/AC adapter
856-18840 IE-Giga-MiniMc, TX/SSLX-SM1550/LONG-SC (1550xmt/1490rcv) w/AC adapter
