IE-MiniFiberLinX-II Serie - Managed Optical Demarcation Compact CPE Device

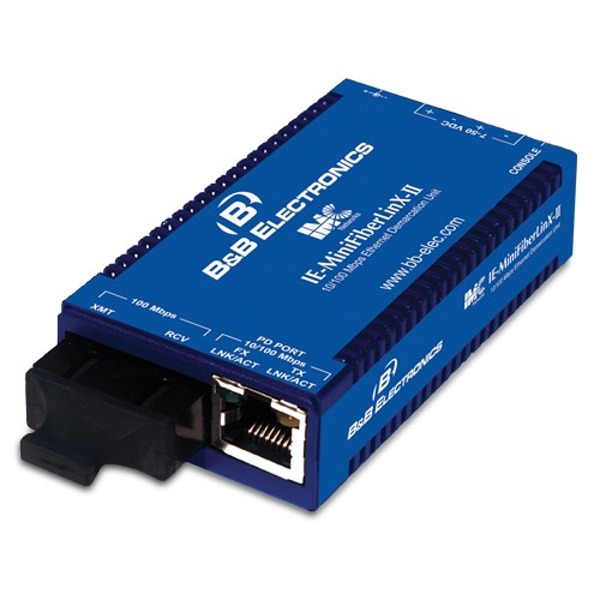

Der IE-MiniFiberLinX-II von B+B SmartWorx ist ein FTTX Medienkonverter.
Der IE-MiniFiberLinX-II von B+B SmartWorx ist ein FTTX Medienkonverter.
Die FTTX Glasfaser Konverter der IE-MiniFiberLinX-II Serie von B+B SmartWorx sind ausgestattet mit einem 100 Mbps Glasfaser Port und einem 10/100 Twisted-Pair Port, Power over Ethernet und 802.3ah OAM (Operation, Administration & Management) Unterstützung.

zum Merkzettel hinzufügen

Datenblatt zusenden

IE-MiniFiberLinx-II Series - Managed Optical Demarcation Compact CPE Device

The compact IE-MiniFiberLinX-II provides point-to-point fiber optic connections with a unique management tool to monitor the entire link between two locations.  IE-MiniFiberLinX-II CPE for fiber optic networks allows service providers to deliver “triple-play” voice, video and data services to customer premises.

As a copper-to-fiber converter, the IE-MiniFiberLinX-II supports multiple fiber types including multi-mode, single-mode, single-strand fiber (SSF), and Course Wavelength Division Multiplexing (CWDM) functionality to increase the capacity of existing fiber.  It allows for remote configuration, provides vital alerts to network administrators, and can manage the CPE and fiber link as a single entity.

Equipped with one 100 Mbps fiber data port, one 10/100 twisted pair port for data and management, as well as an auxiliary port designed to function as a serial port (when used with the included adapter), the IE-MiniFiberLinX-II also offers multiple powering options: AC power (with included adapter), DC (through a 4-terminal power block), as well as Power over Ethernet, acting as a Powered Device (PD) to draw power when connected to 802.3af compliant Power Sourcing Equipment (PSE).

Combining copper-to-fiber conversion, extended temperature performance, plug-and-play operation, miniature size and multiple power options, the IE-MiniFiberLinX-II is one of the most versatile fiber optic CPE devices available.


  • Preserves complete end-to-end fiber connection integrity
  • Bi-directional bandwidth control (per port, per direction, per VLAN)
  • Read/write IEEE 802.1Q VLAN-tags
  • Extra Tagging with Q-in-Q mode (802.1p)
  • Supports passive 802.3ah OAM (Operation, Administration & Management)
  • QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority)
  • VLAN filtering up to 32 values
  • Layer 2 packet switching, store and forward operation
  • Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps
  • AutoCross for MDI/MDIX
  • Features Auto Negotiation and Selective Advertising
  • Supports Half and Full-Duplex operation
  • MTU: Supports over-sized packets up to 1916 bytes per packet
  • LFPT available through CLI configuration


  • Password Control
  • Multiple Access Levels: User Assigned Accounts & Access Levels
  • Management
  • SNMP V1 and V2c compatible
  • Includes GUI-based iView² software for remote management and upgrades
  • Monitors far-end (remote) status without a physical presence or separate connection
  • IEEE 802.3x Flow Control
  • Includes DHCP and TFTP clients
  • Supports Telnet Includes loopback test modes (MAC swap)
  • Includes LinkLoss and FiberAlert
  • Remote capabilities with built-in support for UMA (IP-less management)
  • RS-232 capability for local management
  • Mini-jack cable for direct connection to a PC’s Serial Port included

Unterstützte Ethernet Typen

  • IEEE 802.3i 10Base-T twisted pair
  • IEEE 802.3u 100Base-TX twisted pair
  • IEEE 802.3u 100Base-FX or SX fiber

Unterstützte Glasfaser Typen

  • 50/125μm or 62.5/125μm multi-mode fiber
  • 9/125μm single-mode fiber
  • Single-strand fiber or CWDM

Connectors: RJ-45, and ST or SC

Umgebung (Luftfeuchtigkeit)

  • 5% - 95% (non-condensing)

Umgebung (Temperatur)

  • -49° to +185° F (-45° to +85° C) DC Telco
  • -13° to +167° F (-25° to +75° C) DC Adapter
  • +14° to +122° F (-10° to +50° C) AC Adapter


  • AC Wall Adapter: 100 to 240 VAC ±10% input, 5 VDC output, 2A max.
  • DC Input Voltage: 12 to 48 VDC *, 1 to .02A, 7 to 50 VDC, 1 to 0.1A IEEE 802.3af Power over Ethernet

* Telco compatible -48 VDC allows for an absolute maximum voltage of 56.5 VDC.


  • Traps (Cold Start, Warm Start, Authentication Failure, Link Up, Link Down, Remote Unit Lost, Remote Unit Back Online, Far End TX Link On and Far End TX Link Off, Last Gasp)
  • Link Status of Ports
  • Port Type
  • Fiber Type
  • SNMP Port (Host/Remote)
  • SNMP Agent IP Address (Host/Remote/Single)
  • Link Partner
  • User-Definable Name of Product
  • User-Definable ID/Name of Ports
  • Enable/Disable Ports
  • Enable/Disable FiberAlert
  • Enable/Disable loopback modes
  • Set Duplex Mode for Twisted Pair Ports
  • Set Auto Negotiation/Speed for Twisted Pair Ports

MIB-II (RFC 1213):

  • Packets Transmitted
  • Packets Received
  • Octets (bytes) Transmitted
  • Octets (bytes) Received
  • Plus All Standard MIB II Objects

RMON Statistiken verfügbar für:

  • Drop Events
  • Total Bytes
  • Total Packets
  • Broadcast Packets
  • Multicast Packets
  • CRC Align Errors
  • Undersize Packets
  • Oversize Packets
  • Fragments
  • Jabbers
  • Collisions
  • Distribution of Frame Size
