Wzzard - Intelligent Sensing Plattform

Der Wzzard von B+B Smartworx ist eine Intelligent Sensing Plattform.
Der Wzzard von B+B Smartworx ist eine Intelligent Sensing Plattform.
Wzzard von B+B SmartWorx - Edge Node Top
Wzzard von B+B SmartWorx - Edge Node Top

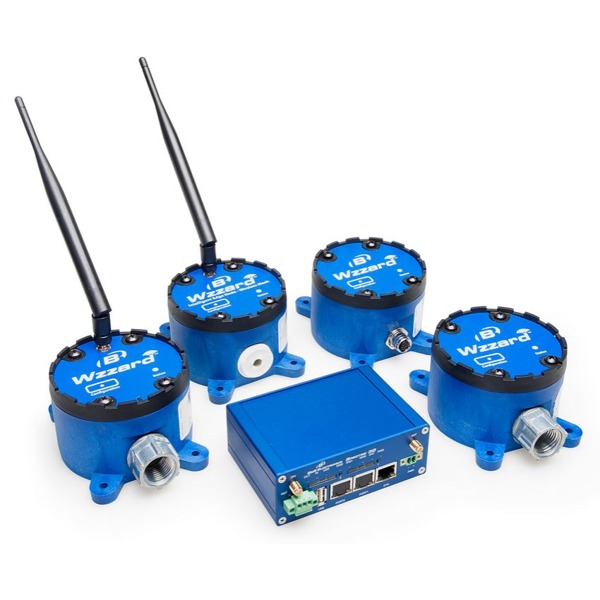

Wzzard von B+B SmartWorx - Nodes Pair
Die Sensor Plattformen der Wzzard Serie von B+B SmartWorx sind ausgestattet mit bis zu 3 externen Sensoren, interner oder externer Antenne mit höherer Reichweite, MQTT Messaging Protocol für M2M Kommunikation und bis zu 32 Wzzard Nodes für über 100 Sensoren in einem Netzwerk.

zum Merkzettel hinzufügen

Datenblatt zusenden

The Wzzard™ Intelligent Sensing Platform

B+B Smartworx developed the Wzzard Intelligent Sensing Platform to facilitate the coming world of connected intelligence, where machines and systems will collaborate, inform and make decisions based upon sensors data. These smart networks will have the ability to run efficiently and autonomously, sometimes for years, with little human intervention other than needed maintenance. B+B SmartWorx Wzzard anticipates this coming connected world.

Wzzard is an easy to use, complete wireless sensor connectivity platform for the rapid deployment of scalable, intelligent, reliable IoT networking in remote and demanding environments. Wzzard was designed to help integrators, VARs and service providers efficiently develop and deploy secure, smart, self-powered, and scalable IoT applications.

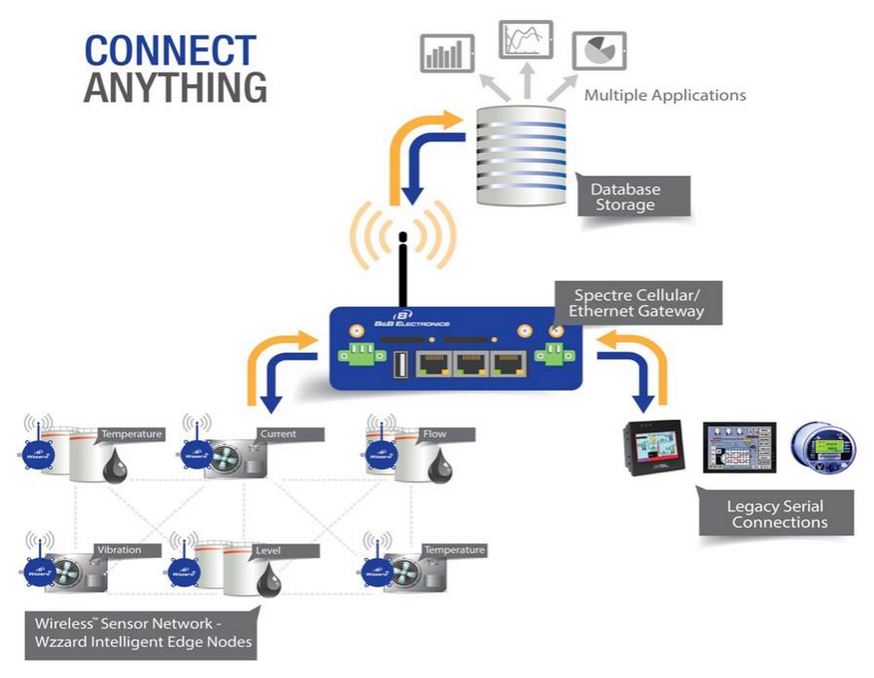

Wzzard von B+B Smartworx - Diagram

Robust Wireless Mesh Communication

B+B chose SmartMesh IP® wireless sensing technology from Linear Technologies Dust Networks. SmartMesh IP is based upon the wireless IEEE 802.15.4e standard and creates full-mesh networks, sometimes referred to as “mesh-to-the-edge” networks. SmartMesh IP networks use a triple-play of wireless mesh technologies—time diversity, frequency diversity, and physical diversity—to assure reliability, resiliency, scalability, power source flexibility, and ease-of-use. Wzzard’s nodes attach automatically, and the SmartMesh IP technology dynamically self-configures to re-form the mesh network. To ensure data always reaches the gateway, nodes will determine their optimal RF paths to other nodes and back to the gateway providing up to five 9’s 99.999% data transmission reliability.

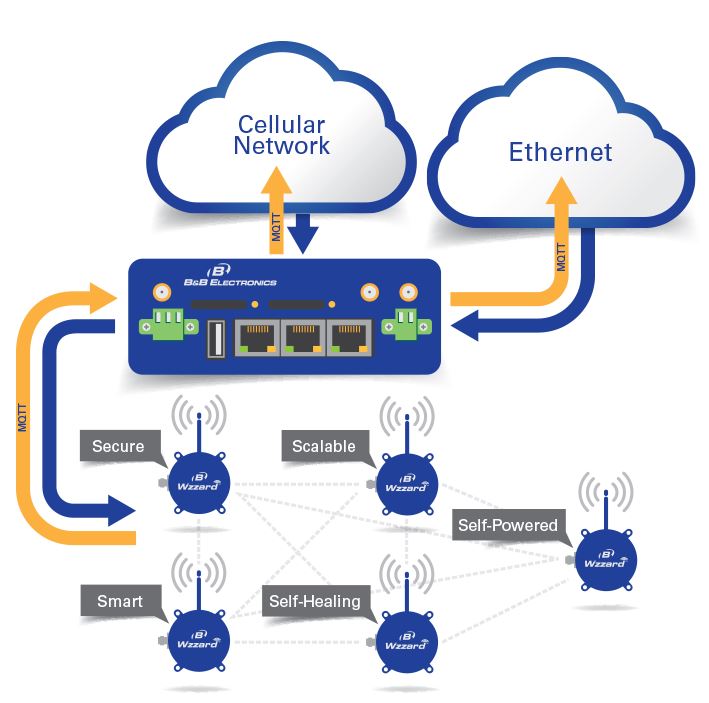

Wzzard von B+B Smartworx - Wireless Mesh Diagram

Why Is Wzzard Exciting?

  • Allows WSNs to scale to hundreds of of nodes which was previously cost-prohibitive.
  • Promotes connectivity from the edge (sensor) through to a gateway and then up to the application.
  • Intelligent data collection, processing and transmission enables migration beyond today’s descriptive analytics, which can only reactively describe what happened and why, towards predictive and prescriptive analytics that can derive meaning from intelligent data and proactively prescribe actions to increase efficiency and reduce unplanned downtime.
  • Allows monitoring in remote and demanding locations at a much more reasonable price point per node than forerunner wireless technologies such as WirelessHART, WiFi, and Proprietary RF.
  • More knowledge at the network edge allows remote nodes to make intelligent decisions without having to involve upstream resources, resulting in a more efficient, reliable network and cost savings.
  • Advanced power-saving features and low power consumption caters to today’s and tomorrow’s smart networks deployed across difficult to reach and often power-less locations, so they may run efficiently and autonomously.
Wzzard LoRa Sensornetzwerk Plattform mit intelligenten Edge Nodes von Advantech LoRa Logo Wzzard LoRa Sensornetzwerk

Sensorplattform mit intelligenten Edge Nodes für LoRa/LoRaWAN Übertragungen

Wzzard Mesh Gateways SmartSwarm IIoT 342 Gateways von Advantech BB-SG30300520-42 Wzzard Mesh Gateways

SmartSwarm IIoT 342 Gateways mit Ethernet, Dust, LTE-EMEA oder LTE-NATAM

Wzzard Mesh Nodes Netzknoten von Advantech, die Industrie Standard Sensoren unterstützen Wzzard Mesh Nodes

Netzknoten, die Industrie Standard externen Sensoren unterstützen

BB-WSK-HAC-2Wzzard Mesh Starter Kit von Advantech für industrielle Anwendungen Wzzard Mesh Starter Kits

Drahtlose Sensor Kits für industrielle oder kommerzielle Anwendungen
