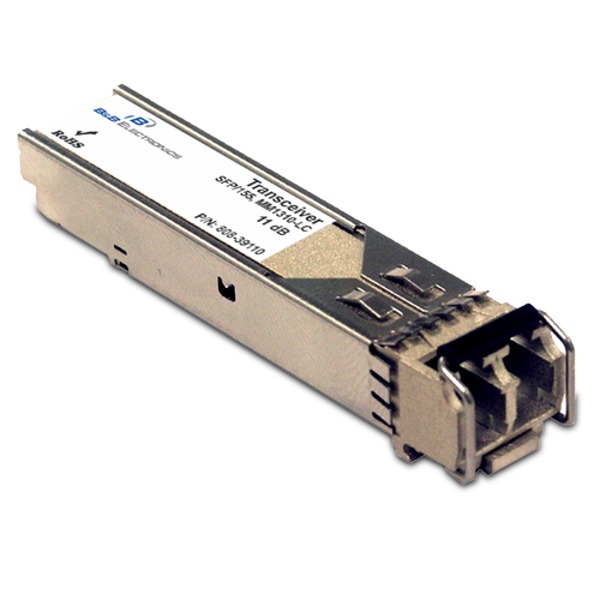

Die SFP, IE-SFP, SFP+ & XFP Transceivers von B+B SmartWorx sind ausgestattet mit einer erhöhten Betriebstemperatur von -40°C bis + 85°C, Geschwindigkeiten bis zu 10 Gbps und unterschiedlichsten Ports.

zum Merkzettel hinzufügen

Datenblatt zusenden


Future-proof network equipment using copper SFPs and fiber SFPs and XFPs

SFPs and XFPs are compact transceivers which function as modular connectors. Available for copper (RJ-45) and for all common fiber modes, wavelengths and data rates, SFPs and XFPs allow network operators to connect different interface types to the same network equipment, via an SFP/XFP port. The cost of cable upgrades is greatly reduced - preserving the investment in costly networking equipment, for the price of a relatively inexpensive SFP or XFP. More and more network equipment is being designed with SFP/XFP ports, to take advantage of this flexibility, and to take the uncertainty and guesswork out of expensive equipment purchases. Remember to select the SFP or XFP to match the speed of the designated port.

Specifications

 Technical

  • Plug-and-Play Operation
  • 2 x RJ-45 and 2 x SFP ports (SFPs sold separately)
  • IEEE 802.3i 10Base-T over twisted pair
  • IEEE 802.3u 100Base-TX over twisted pair
  • IEEE 802.3u 1000Base-T over twisted pair
  • IEEE 802.3u 100Base-FX
  • IEEE 802.3u 1000Base-X
  • Jumbo Frames support (up to 10240 bytes)
  • Auto Negotiation, Auto-Cross for MDI/MDIX
  • Includes diagnostic LEDs
  • 1+1 uplink protection (< 50 mSecs)
  • Extended temperature range from -40° to +85° C
  • -48 VDC terminal for Telco applications
  • Compatible with all standard MSA compliant SFP transceivers

Standards Compliance

  • IEEE 802.3ah
  • IEEE 802.1ag
  • Y.1731
  • SFP-MSA SFP standard (September 14, 2000)
  • SFF-8472 DDMI standard (Revision 1.0)

Mechanical Dimensions

  • 0.86”H x 3.66”W x 3.88”D (2.2 x 9.38 x 9.94 cm)

Enclosure

  • Metal

Shipping Weight

  • lbs (0.45 kg)

Power

  • 5 to 24 VDC (Barrel)
  • 48 VDC Telco (Terminal

Power information

  • Min: 3.15W (1 optic SFP [1 Gbps], 1 Tx [100 Mbps])
  • Max: 7.0W (2 Cu SFP [1 Gbps], 2 Tx [1 Gbps])
* Power consumption is based on SFP types

Environmental Operating Temperature w/ Franmar AC Wall Adapter

  • +14° to +122° F (-10° to +50° C)

Operating Temperature w/DC Configuration

  • -40° to +185° F (-40° to +85° C)

Storage Temperature

  • -49° to +185° F (-45° to +85° C)

Operating Humidity

  • 10 to 95% Non-condensing

Regulatory Approvals

  • FCC Class A (Using 48V Telco-type power)
  • FCC Class B (Using all other power options)
  • UL/cUL, CE
Modelle
808-38101IE-SFP/155-ED, MM850-LC
808-38102IE-SFP/155-ED, MM1300-LC
808-38103IE-SFP/155-ED, SM1310-LC
808-38104IE-SFP/155-ED, SM1310/PLUS-LC
808-38105IE-SFP/155-ED, SM1550/LONG-LC
808-38121IE-SFP/155-ED, SSFX-SM1310-SC (1310xmt/1550rcv)
808-38122IE-SFP/155-ED, SSFX-SM1550-SC (1550xmt/1310rcv)
808-38123IE-SFP/155-ED, SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
808-38124IE-SFP/155-ED, SSFX-SM1550/PLUS-SC (1550xmt/1310rcv)
808-38125IE-SFP/155-ED, SSFX-SM1310/LONG-SC (1310xmt/1550rcv)
808-38126IE-SFP/155-ED, SSFX-SM1550/LONG-SC (1550xmt/1310rcv)
808-38521IE-SFP/155-ED, SSFX-SM1310-LC (1310xmt/1550rcv)
808-38522IE-SFP/155-ED, SSFX-SM1550-LC (1550xmt/1310rcv)
808-38527IE-SFP/155-ED, SSFX-SM1490/XLONG-LC (1490xmt/1550rcv)
808-38528IE-SFP/155-ED, SSFX-SM1550/XLONG-LC (1550xmt/1490rcv)
808-38529IE-SFP/155-ED, SSFX-SM1310/LONG-LC (1310xmt/1550rcv)
808-38530IE-SFP/155-ED, SSFX-SM1550/LONG-LC (1550xmt/1310rcv)
808-38200IE-SFP/1250-ED, SM1310-LC
808-38201IE-SFP/1250-ED, MM850-LC
808-38206IE-SFP/1250-ED, MM1300-LC
808-38203IE-SFP/1250-ED, SM1310/PLUS-LC
808-38204IE-SFP/1250-ED, SM1550/LONG-LC
808-38205IE-SFP/1250-ED, SM1550/XLONG-LC
808-38221IE-SFP/1250-ED, SSLX-SM1310-SC (1310xmt/1550rcv)
808-38222IE-SFP/1250-ED, SSLX-SM1550-SC (1550xmt/1310rcv)
808-38223IE-SFP/1250-ED, SSLX-SM1310/PLUS-SC (1310xmt/1550rcv)
808-38224IE-SFP/1250-ED, SSLX-SM1550/PLUS-SC (1550xmt/1310rcv)
808-38227IE-SFP/1250-ED, SSBX-SM1310-SC (1310xmt/1490rcv)
808-38228IE-SFP/1250-ED, SSBX-SM1490-SC (1490xmt/1310rcv)
808-38229IE-SFP/1250-ED, SSBX-SM1310/PLUS-SC (1310xmt/1490rcv)
808-38230IE-SFP/1250-ED, SSBX-SM1490/PLUS-SC (1490xmt/1310rcv)
808-38301IE-SFP/2.4-ED, MM850-LC
808-38302IE-SFP/2.4-ED, SM1310-LC
808-38303IE-SFP/2.4-ED, SM1310/PLUS-LC
808-38304IE-SFP/2.4-ED, SM1550/LONG-LC
808-38311IE-SFP/2.4-ED, SSLX-SM1310-LC (1310xmt/1550rcv)
808-38312IE-SFP/2.4-ED, SSLX-SM1550-LC (1550xmt/1310rcv)
808-38313IE-SFP/2.4-ED, SSLX-SM1310/PLUS-LC (1310xmt/1550rcv)
808-38314IE-SFP/2.4-ED, SSLX-SM1550/PLUS-LC (1550xmt/1310rcv)
808-38315IE-SFP/2.4-ED, SSLX-SM1310/LONG-LC (1310xmt/1550rcv)
808-38316IE-SFP/2.4-ED, SSLX-SM1550/LONG-LC (1550xmt/1310rcv)
808-38600IE-SFP+ SR/10G-ED, MM850-LC
808-38601IE-SFP+LR/10G-ED, SM1310-LC
808-38610IE-XFP SR/10G-ED, MM850-LC
808-38611IE-XFP LR/10G-ED, SM1310-LC
808-38612IE-XFP ER/10G-ED, SM1550-LC
808-38613IE-XFP ZR/10G-ED, SM1550/PLUS-LC
808-38721IE-SFP/1250-ED, SSLX-SM1310-LC(1310xmt/1550rcv)
808-38722IE-SFP/1250-ED, SSLX-SM1550-LC (1550xmt/1310rcv)
808-38723IE-SFP/1250-ED, SSLX-SM1310/PLUS-LC (1310xmt/1550rcv)
808-38724IE-SFP/1250-ED, SSLX-SM1550/PLUS-LC (1550xmt/1310rcv)
808-38725IE-SFP/1250-ED, SSLX-SM1490/LONG-LC (1490xmt/1550rcv)
808-38726IE-SFP/1250-ED, SSLX-SM1550/LONG-LC (1550xmt/1490rcv)
808-38727IE-SFP/1250-ED, SSBX-SM1310-LC (1310xmt/1490rcv)
808-38728IE-SFP/1250-ED, SSBX-SM1490-LC (1490xmt/1310rcv)
808-38729IE-SFP/1250-ED, SSBX-SM1310/PLUS-LC (1310xmt/1490rcv)
808-38730IE-SFP/1250-ED, SSBX-SM1490/PLUS-LC (1490xmt/1310rcv)
808-39001SFP/10-1250, TX
808-390101000Mbps copper SFP
