ConnectPort® TS 8/16 Serie - Terminalserver mit dual IPv4/IPv6 Stack

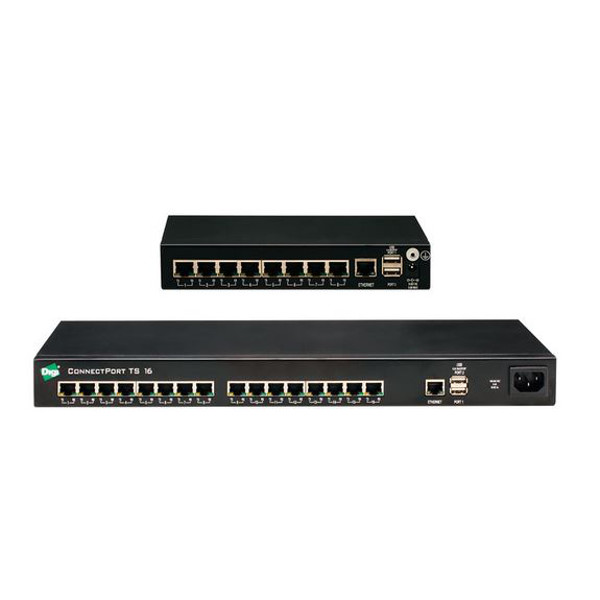

Die Terminalserver der ConnectPort TS 8/16 Serie von Digi.
Die Terminalserver der ConnectPort TS 8/16 Serie von Digi.
Der ConnectPort TS 8 von Digi ist ein Terminalserver.
Der ConnectPort TS 16 von Digi ist ein Terminalserver.
Die Terminalserver der ConnectPort® TS 8/16 Serie von Digi sind ausgestattet mit 8 - 16 Ports, Tx/Rx LEDs, RealPort® Technologie für COM/TTY Portkontrolle/-management, SSL/TLS sowie SSHv2 Security und einfacher konfiguration durch den Webbrowser oder CLI.

zum Merkzettel hinzufügen

Datenblatt zusenden


ConnectPort® TS 8/16 - Terminal servers with dual IPv4/IPv6 stack

ConnectPort TS 8/16 serial servers provide secure, easy integration of virtually any serial device into wired Ethernet networks. They are ideal for use in IPv4/IPv6 United States Government Department of Defense networks and for applications requiring COM/TTY ports, serial tunneling or TCP/UDP functionality.

The built-in Python development environment enables application customization. This easy-to-use, universal programming language allows complete control of device connections, data manipulation and event based actions.

Efficient configuration and management of the ConnectPort TS 8/16 is available through an integrated and secure web user interface as well as a powerful Command Line Interface option. SNMPv2 support provides simple device integration into centralized network management systems.

Additional device connectivity is provided through two USB ports to devices such as Digi’s Watchport® USB camera or a USB memory stick.

Performance
ManagementHTTP/HTTPS, SSH or Telnet; Optional secure enterprise management via Digi Remote Manager
ProtocolsIPv4/IPv6, UDP/TCP, DHCP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, SSH direct to serial port, Modbus/TCP to Modbus protocol conversion support
SoftwarePatented RealPort COM port redirector (server initiated or device initiated); RFC 2217; Python support
Status LEDsSerial: Tx/Rx; Ethernet: Link/Activity, Diagnostic
SecurityHTTPS, SSL, SSL/TLS, SSHv2, FIPS 197, SNMPv2, PPP
Dimensions (L x W x H)
ConnectPort TS 8 ConnectPort TS 8 MEI4.15 in x 7.7 in x 1.3 in (10.5 cm x 19.6 cm x 3.3 cm)
ConnectPort TS 16 ConnectPort TS 16 MEI17 in x 6.95 in x 1.62 in (43.18 cm x 17.65 cm x 4.1 cm) (19" rack mountable, includes kit)
Weight
ConnectPort TS 8 ConnectPort TS 8 MEI4.1 lb (1.86 kg)
ConnectPort TS 16 ConnectPort TS 16 MEI5 lb (2.3 kg)
Interfaces
ConnectPort TS 8 ConnectPort TS 8 MEI8 RS 232 serial ports MEI version: 8 RS 232/422/485 serial ports (software selectable)
ConnectPort TS 16 ConnectPort TS 16 MEI16 RS 232 serial ports MEI version: 16 RS 232/422/485 serial ports (software selectable)
ThroughputUp to 230 Kbps per port
Signal SupportTXD, RXD, RTS, CTS, DTR, DSR, DCD, RI
Ethernet
Physical Layer10/100 Base-T
Data Rate10/100 Mbps
ModeFull or Half duplex
USB
Ports2 ports @ .5A max per port
Performance TS 8
Power Input9-30 VDC @ .8A max
Power Supply12VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included; Extended temperature power supply available
Power ConsumptionTypical: 6 W (500mA @ 12Vdc) Max: 12 W (1A @ 12 Vdc)
Surge Protection4 kV burst (EFT) per-4-4; 2 kV surge per EN61000-4
Performance TS 16
Power Input100-240 VAC, 50-60 Hz, 0.4A
Power SupplyOpen frame power supply: 100 to 250 VAC in 12 VDC out
Power ConsumptionTypical: 8 W (660mA @ 12 Vdc) Max: 15 W (1.25A @ 12 Vdc)
Surge Protection1 kV burst (EFT) per EN61000-4-4; 2 kV surge transient per
Environmental
Operating Temperature TS 80° C to 60° C (32° F to 140° F)
Operating Temperature TS 160° C to 55° C (32° F to 131° F)
Storage Temperature-35° C to 85° C (-31° F to 185° F)
Relative Humidity5 to 95% (non-condensing)
Ethernet Isolation1500VAC min per IEEE 802.3/ABSU X 3.263
Serial Port Protection (ESD)+8 kV air gap and +4 kV contact discharge per IEC 1000-4-2
Approvals
SafetyUL60950-1, EN/IEC 60950-1, CAN/CSA C22.2 No. 60950, CUL60950-1-03
Emissions/ImmunityFCC Part 15 Subpart B Class A, EN55024, EN55022, Class B, AS/NZS CUSOR 22, EN61000-3-2 ,3
Modelle
ConnectPort TS 870002324
ConnectPort TS 8 MEI70002330
ConnectPort TS 1670002389
